SBC Based Projects

Single Board Computers provide a best match of computer processing power along with embedded support. This is a best option when a solution is required to run at shop floor or such harsh conditions.

The power of SBCs has grown over the period to match the industry demands. SBCs have a good mix of embedded controllers and computer capabilities.

We have made complete use of the SBCs to deliver elegant, low cost and durable solutions.

  • logger
  • 20140713_142705
  • batching_report
  • batching_main
  • mchmi_manual_mode
  • mchmi_job
  • mchmi_sys_setting

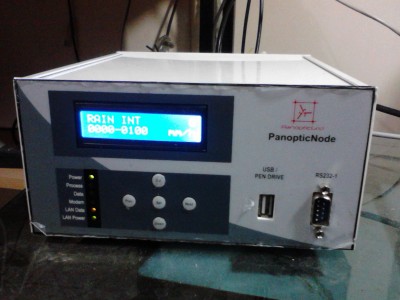

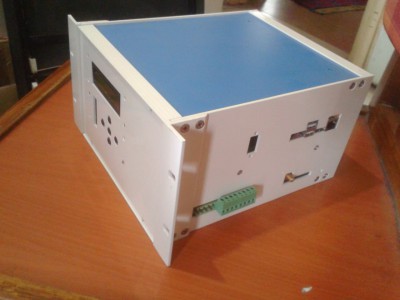

Data Logger

  • Application
    • Data logging solutions for various segments
    • Medical
    • Industrial machine monitoring
    • Whether monitoring
    • Machine controller monitoring
  • Input Interfaces
    • A generic data logger receiving input from different sensors over serial port.
    • Data over Ethernet
    • Local sensors connected to the device
    • Interface based on standard protocols like MODBUS, NMEA, CSV
    • Data sharing
    • Provides data export to pen drive for specified period
    • Provides browser based interface to monitor the logger and export the data
    • The data is posted to web server
  • Data Presentation
    • Web based application for displaying live & history data
    • Local browser based interface for monitoring / customizing the logger and viewing data
  • Features
    • Logs the data at regular interval
    • Accepts limiting values to detect alarm conditions
    • Logs data when alarm condition changes

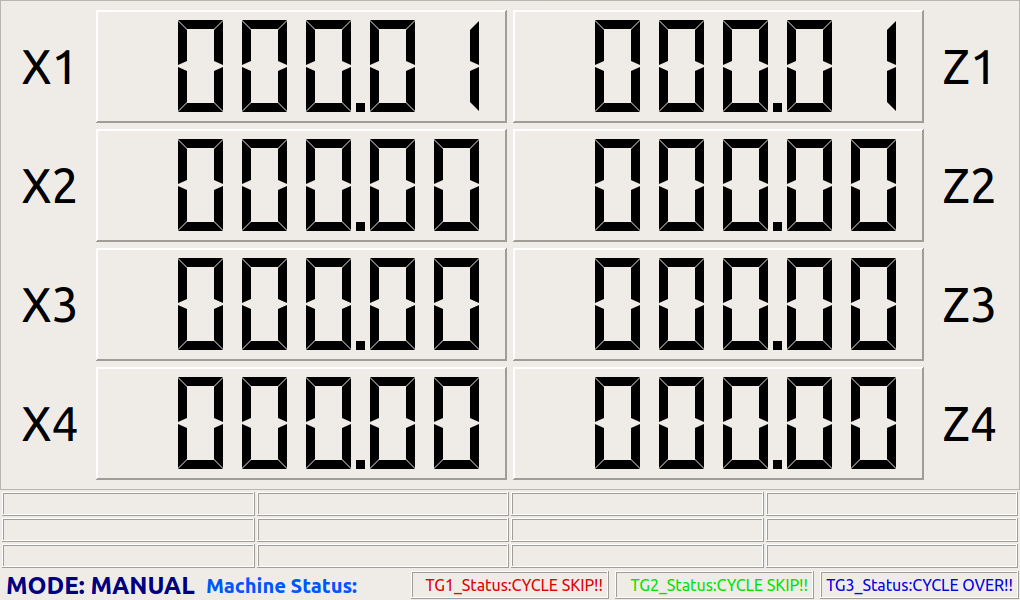

Machine Control HMI

  • Application
    • CNC Controller
    • Custom automation
    • SPM
  • Machine Control
    • Controls a multiple axis CNC controller
    • Communicates on serial port with MODBUS protocol
    • Backup and restore application programs to flash drive

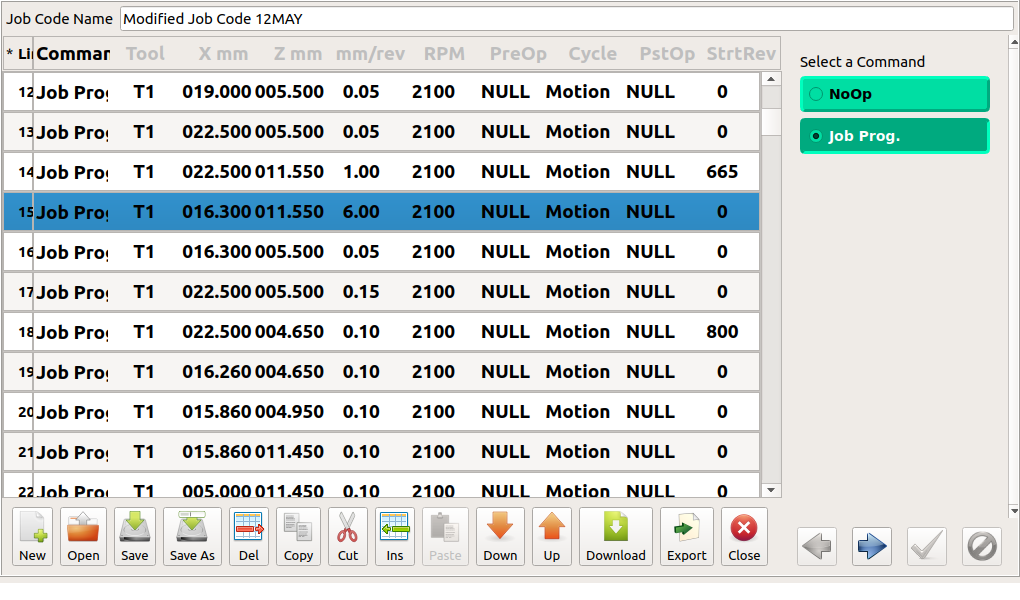

    • Import job & application programs from flash drive
    • Display axis movement & position  information
    • Display custom information on execution screen

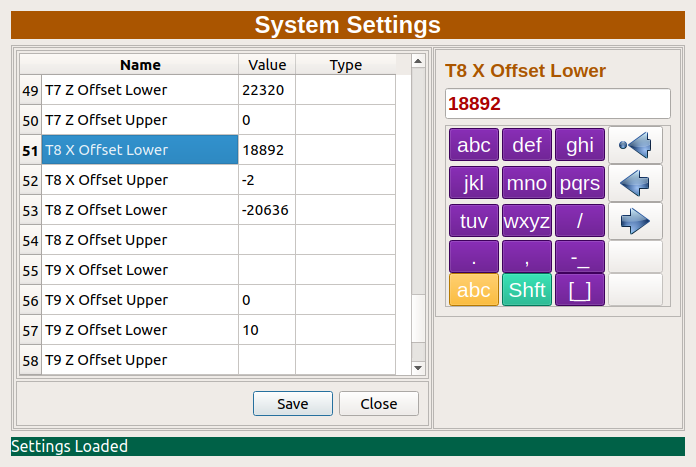

    • Password protected Administrator mode for easy customization on site
    • Information exchange using MODBUS register definitions with data conversion using custom formula
  • GUI Interface
    • GUI application with touch screen on full color LCD screen
    • QWERTY and numeric on-screen keyboard
    • Feature rich elegant button panel
    • Easy selection of options with touch buttons
  • Programming
    • Custom programming language provides customizing the controller based on the specific need
    • Elegant, easy, selectable programming editor with validations
    • Comments for every line of code for easy documentation
    • Facility to define the commands, parameters and conversion to object code
    • Custom byte code definition using JavaScript code, usable by the controller
    • Custom selection lists for flawless definition
    • Wizard based code editing
    • Converts program to byte code while downloading

Cable Harness Testing

  • Application
    • Industrial electronics
    • Automobile
  • Design User Interface
    • Definition from standard screen and keyboard / mouse
    • Option for remote access from a computer through LAN
    • Custom label definition
    • Option for LCD graphics full color interface with touch screen
    • Maintain record of the tested cables
  • Runtime interface
    • Alphanumeric LCD screen with keypad
    • Menu options to select the cable type
    • Buzzer output to indicate test success / fail
    • Cable definition
    • Option to define cable type
    • Learn & save cable connections from master cable harness
    • Design graphics label for the cable with text in horizontal or vertical mode, barcode, label positioning
  • Cable testing
    • Check cable connections based on selected cable type
    • Indicate test success / fail on LCD and through buzzer

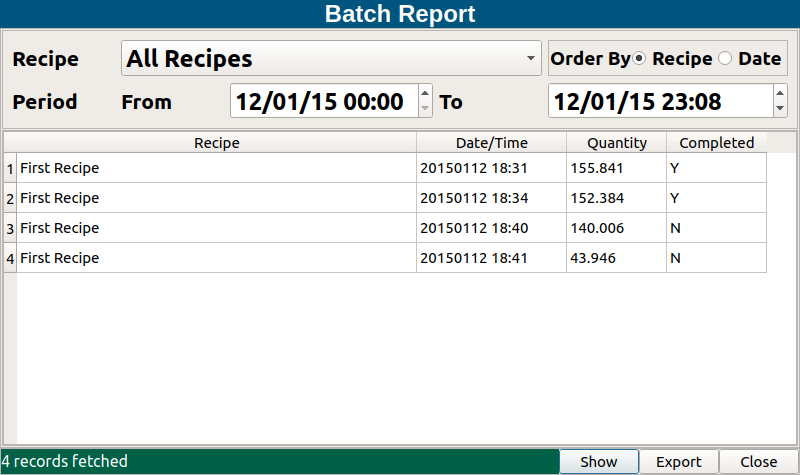

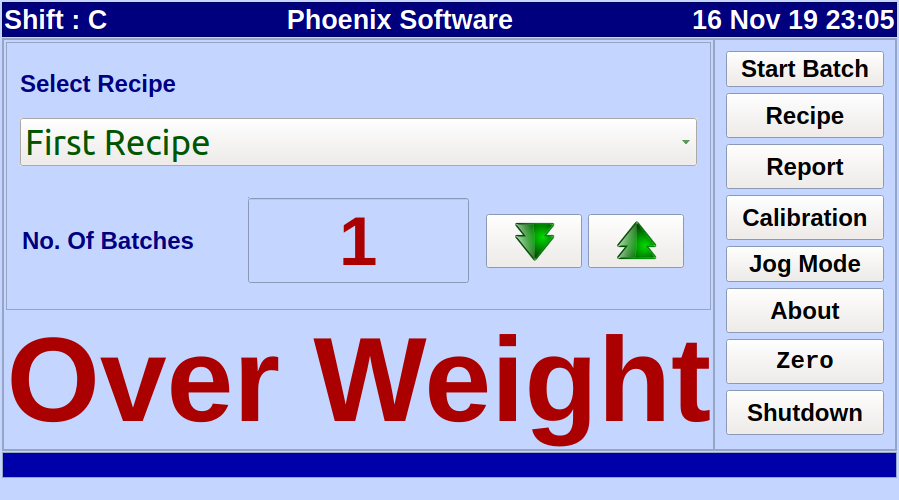

Batching Controller

  • Application
    • Manufacturing industry
    • Chemical industry
  • User Interface
    • Recipe Definition
    • QWERTY & Numeric keyboard
  • Control Interfaces
    • Uses high precision load cell sensor
    • Relay output to control hopper gates
    • PFC input & output for serializing operations with other controllers
  • Features
    • Recipe definition
    • Password protected restricted access for JOG & Calibration mode
    • Maintain operations log
    • Defined cycle count monitoring / continuous operation
    • Material drop time compensation
    • On site calibration option
    • Password protected settings for on site customization
