Machine Interface Software

JAVA, .Net & Qt are some of the platforms we have used for software development. Most of these software applications are interfaces to the devices, providing an easy way to interact. We have developed applications to cater to office work. These are tiny ERP solutions.

  • CNCMilling2
  • CNCLATHE
  • image5UTM
  • ConciseView
  • DetailView

Jacquard Card Puncing

  • Custom card layout definition
  • Uses punching design in the form of image file
  • Uses both color and gray scale images
  • Punching job definition combines the card layout and image
  • Job definition helps re-punching the cards whenever required
  • Facility to specify design image reading start position and direction
  • Facility to specify starting position and direction for placing image on the card layout
  • Each line on the design creates a card data
  • Controls the punching machine controller through serial port protocol
  • Facility to punch range of card, selected cards, inverted image punch
  • JOG mode for checking the mechanical components and electronics
  • Installed across India with over 500 installations
  • Running for more than 15 years

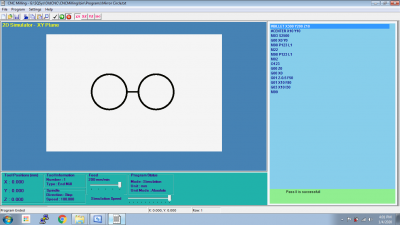

CNC Lathe & Milling

  • Two & Three axis control through stepper motor
  • Works with CNC programs with G & M codes
  • Canned cycle support
  • Program syntax check
  • 2D simulation with speed control
  • Simultaneous simulation and execution mode
  • Spindle speed control
  • Multi tool support with tool compensation
  • JOG mode for testing hardware and electronics peripherals, single command execution
  • Complex functionality support like threading, auto tool change
  • Used mostly for training in various institutes across India
  • More than 50 installations

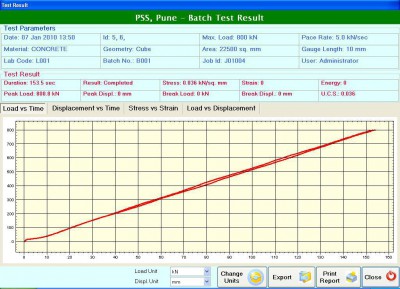

Universal Testing Machine

  • Tensile, Shear & Compression testing
  • Supports various types of material & shapes
  • Live graphs presentation
  • Option for load or displacement control
  • Monitoring of peak load
  • Calculations like stress,strain
  • Line graphs showing stress, strain, displacement, load etc
  • Report printing with graphs & test details
  • Control of the operations from software
  • JPG feature to test mechanical & electronic peripherals

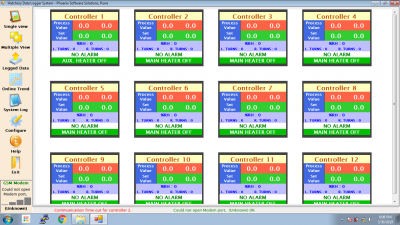

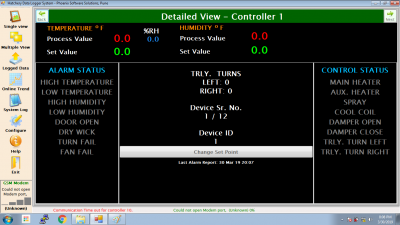

Hatchery Controller Dashboard (HCSI)

  • HCSI monitors hatchery controllers
  • The software communicates with the controllers and collects the controller’s parameters using MODBUS over RS485
  • The controller information is displayed live on the dashboard
  • HCSI displays the information in multiple formats like Single view, Multi-controller view, Logged Data and Trending.
  • The software provides a dashboard for all controllers from single computer desktop.
  • Data logging
    • HCSI saves controller parameters from all connected controllers at regular intervals. This can be viewed in tabular form as well as in the form of trending.
    • This log can be viewed in tabular form, it can be exported in CSV format.
    • The saved log can be loaded again to be viewed in tabular and trending forms.
  • SMS alert
    • SMS alert is sent to defined mobile numbers
    • An SMS alert is generated when a change in alarm condition is detected, for specified duration
  • Web interface
    • Status and alarm information is posted to web at regular interval or at the change in alarm
    • Web dashboard shows the current / live data
    • History data is also available for viewing and for download
